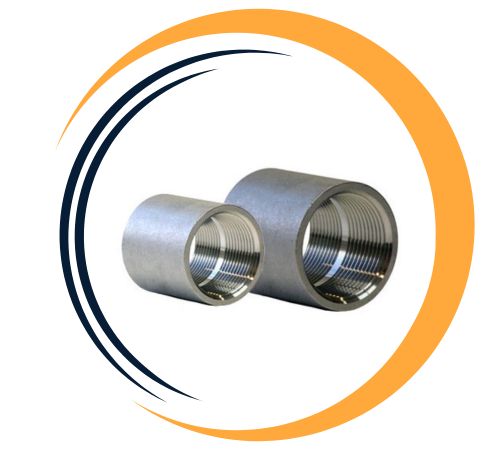

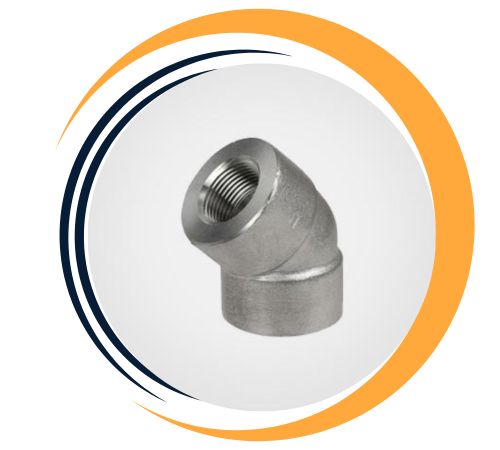

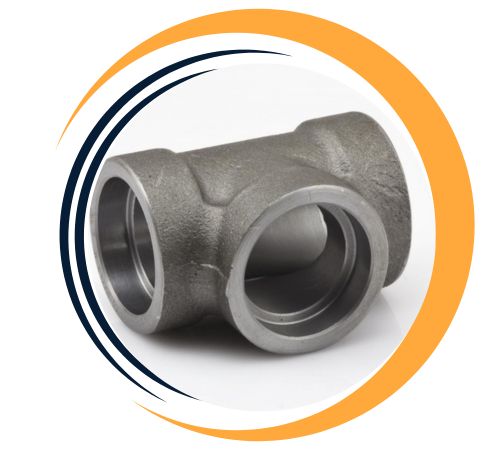

Zain Fittings stands out as a top-notch manufacturer and supplier of Stainless Steel 904L Forged Fittings, proudly based in Surabaya, Indonesia. The company has earned a solid reputation for crafting high-quality forged fittings that excel in corrosion resistance, strength, and durability, even in the most challenging environments. Stainless Steel 904L is a low-carbon, austenitic stainless steel enriched with nickel, molybdenum, and copper, which gives it remarkable resistance to pitting, crevice corrosion, and acid attacks. Zain Fittings provides a wide array of 904L forged fittings, including elbows, tees, reducers, caps, and couplings, serving various industries like chemical processing, petrochemical, marine, and pharmaceuticals.
Specifications : ASTM A182 & ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
These Stainless Steel 904L Forged Fittings typically contain around 19–23% chromium, 23–28% nickel, 4–5% molybdenum, and 1–2% copper, with a low carbon content that enhances weldability and reduces carbide precipitation. They boast a tensile strength of about 485–620 MPa, yield strength of 170–275 MPa, and elongation of 35–45%. Thanks to their austenitic microstructure, they offer excellent toughness and high resistance to both oxidizing and reducing acids, making them perfect for high-pressure and chemically aggressive applications.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Zain Fittings is a leading supplier of Stainless Steel 904L Forged Fittings in Jakarta, Indonesia. We offer an extensive range of Stainless Steel 904L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| Pressure-Temperature | |||||
| Temperature | Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 inch. | 1 1/4 – 2 inch. | 2 1/2 – 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Choose Stainless Steel 904L Forged Fittings from Zain Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Stainless steel 904L forged fittings offer many advantages, including exceptional corrosion resistance, especially in high acid and chloride environments, especially in high acid and chloride environments their high copper content provides resistance to pitting , fracture loss, stress loss and cracking are enhanced. The excellent weldability and formability of 904L makes it ideal for complex designs and complex applications. The fitting also provides excellent strength, stability and rigidity, ensuring a long service life even in harsh conditions. In addition, the oxidation resistance and high thermal stability of 904L make it suitable for applications such as pharmaceutical, pharmaceutical and marine engineering.
Yes, custom sizes for Stainless Steel 904L Forged Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
You’ll find Stainless Steel 904L Forged Fittings widely utilized in industries that demand outstanding corrosion resistance and durability. They’re particularly well-suited for chemical and petrochemical plants, acid handling systems, heat exchangers, condensers, and seawater equipment. Their exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking makes them ideal for marine, pharmaceutical, and food processing sectors. Plus, these fittings are also employed in power generation, desalination, and wastewater treatment industries, ensuring long-lasting reliability, operational safety, and efficient performance even in the toughest conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
