Hastelloy C22 Buttweld Fittings Manufacturer and Supplier In Jakarta, Indonesia

Zain Fittings has earned a solid reputation as a reliable manufacturer and supplier of top-notch Alloy Steel WP22 Buttweld Fittings right in Surabaya, Indonesia. We proudly serve a growing clientele in Jakarta and beyond. Our dedication to precision engineering and adherence to international standards sets us apart. We specialize in crafting durable, high-performance buttweld fittings that cater to both industrial and commercial needs. Designed to endure high-pressure situations and extreme temperatures, our fittings are perfect for the rigorous demands of the oil & gas, petrochemical, and power generation industries. When it comes to Alloy Steel WP22 solutions in Indonesia, Zain Fittings is your go-to partner.

Hastelloy Alloy N06022 Pipe Fittings Indonesia, Inconel C22 Buttweld Fittings United kingdom, Hastelloy N06022 Butt weld Fittings Jakarta, Hastelloy 2.4602 Buttweld Fittings West Midlad, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings Bekasi, Nickel Alloy N06022 Buttweld Pipe Fittings Surabaya, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in Mumbai Bandung.

Hastelloy C22 Buttweld Fittings Specification

Specifications

ASTM B366 / ASME SB366

DIMENSIONS

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″

Type

Seamless / Welded / Fabricated

Thickness

20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Schedule

Sch 5 TO Sch XXS.

Hastelloy C22 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Hastelloy C22 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Hastelloy C22 Buttweld Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

Hastelloy C22 Buttweld Fittings are made from a nickel-chromium-molybdenum alloy, offering superior resistance to corrosion in aggressive environments, including both oxidizing and reducing conditions. The composition includes approximately 56% nickel, 22% chromium, 13% molybdenum, and trace amounts of iron, tungsten, and cobalt. These fittings exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. The mechanical properties include high tensile strength (around 758 MPa), yield strength (about 345 MPa), and excellent ductility. With outstanding weldability, they are ideal for demanding applications in chemical processing and other industries.

Hastelloy C22 Buttweld Elbow Dimensions Standard

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Hastelloy N06022 Buttweld Cross Indonesia, Hastelloy C22 Buttweld Pipe Nipple United kingdom, Hastelloy Alloy N06022 Buttweld Reducer Jakarta, JIS NW 6022 Buttweld Elbow Surabaya, Nickel Alloy C22 Buttweld Pipe Cap Bekasi, ASME SB366 Alloy C22 Buttweld Fittings Surabaya, Hastelloy® Alloy N06022 Buttweld Stub End Bandung, Alloy N06022 Buttweld Tee Indonesia, Alloy C22 Buttweld Welded Fittings United kingdom, Hastelloy N06022 Pipe Fittings Supplier in Jakarta, Indonesia.

Largest Hastelloy C22 Buttweld Fittings Supplier in Jakarta, Indonesia

Our Alloy Steel WP22 Buttweld Fittings are made up of key elements like Chromium (2.00–2.50%) and Molybdenum (0.87–1.13%), along with carefully balanced levels of carbon, manganese, phosphorus, sulfur, and silicon. These components work together to boost corrosion resistance, heat tolerance, and mechanical strength. Typically, you can expect a tensile strength ranging from 415 to 585 MPa, a yield strength of at least 205 MPa, and a minimum elongation of 20%. Plus, these fittings boast impressive hardness and stress rupture resistance, making them perfect for high-temperature applications in power plants and refineries. At Zain Fittings, we ensure that all our products meet the ASTM A234 WP22 standards.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SIZE of Hastelloy Alloy C22 Buttweld Fittings

NPS (inch)	Pipe Sch.	Wall Thk. (in)	OD (inch)	Temperature
				100	200	300	400	500
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400
1″	40	0.133	1.315	2205	2205	2205	2047	1902
	80	0.179	1.315	3061	3061	3061	2841	2640
	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2″	40	0.145	1.900	1629	1629	1629	1512	1404
	80	0.200	1.900	2303	2303	2303	2138	1986
	160	0.281	1.900	3362	3362	3362	3120	2899
2″	40	0.154	2.375	1371	1371	1371	1272	1182
	80	0.218	2.375	1985	1985	1985	1843	1712
	160	0.344	2.375	3283	3283	3283	3047	2831
3″	40	0.216	3.500	1301	1301	1301	1208	1122
	80	0.300	3.500	1844	1844	1844	1712	1590
	160	0.438	3.500	2787	2787	2787	2587	2403
4″	40	0.237	4.500	1102	1102	1102	1023	950
	80	0.337	4.500	1596	1596	1596	1482	1377
	160	0.531	4.500	2611	2611	2611	2424	2552
5″	40	0.258	5.563	965	965	965	896	832
	80	0.375	5.563	1428	1428	1428	1325	1231
	160	0.625	5.563	2474	2474	2474	2296	2133
6″	40	0.280	6.625	877	877	877	814	756
	80	0.432	6.625	1379	1379	1379	1280	1189
	160	0.719	6.625	2382	2382	2382	2211	2054
8″	40	0.322	8.625	771	771	771	716	665
	80	0.500	8.625	1218	1218	1218	1131	1050
	160	0.906	8.625	2298	2298	2298	2133	1982
10″	40	0.365	10.750	699	699	699	649	603
	80	0.594	10.750	1159	1159	1159	1075	999
	160	1.125	10.750	2289	2289	2289	2124	1974

Why Choose Hastelloy C22 Buttweld Fittings from Zain Fittings?

Hastelloy C22 Buttweld Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy Alloy N06022 Pipe Fittings Indonesia, Inconel C22 Buttweld Fittings United kingdom, Hastelloy N06022 Butt weld Fittings Jakarta, Hastelloy 2.4602 Buttweld Fittings West Midlad, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings Bekasi, Nickel Alloy N06022 Buttweld Pipe Fittings Surabaya, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in Mumbai Bandung.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 Buttweld Fittings offer several key advantages, including exceptional resistance to a wide range of corrosive environments, such as oxidizing and reducing acids. They provide excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh chemical and pharmaceutical applications. Their high strength and durability ensure long-lasting performance under extreme temperatures. Additionally, Hastelloy C22 offers excellent weldability and fabricability, reducing downtime during installation and maintenance. These fittings are highly reliable, making them a preferred choice in industries that require superior corrosion resistance and performance.

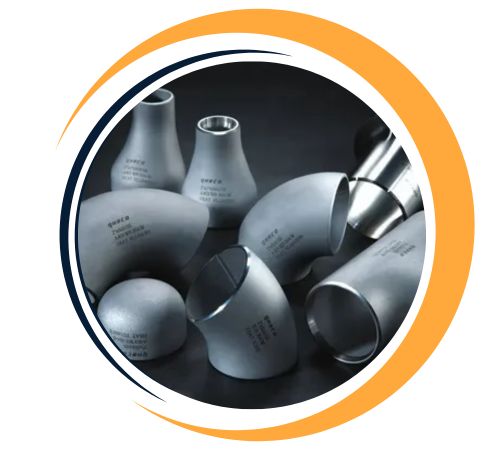

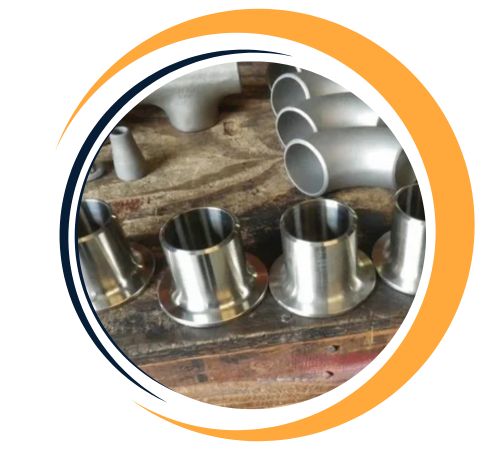

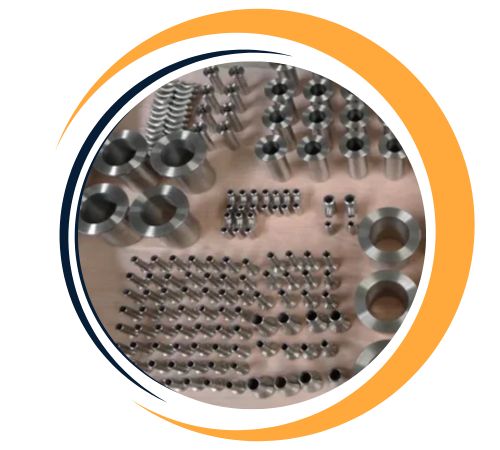

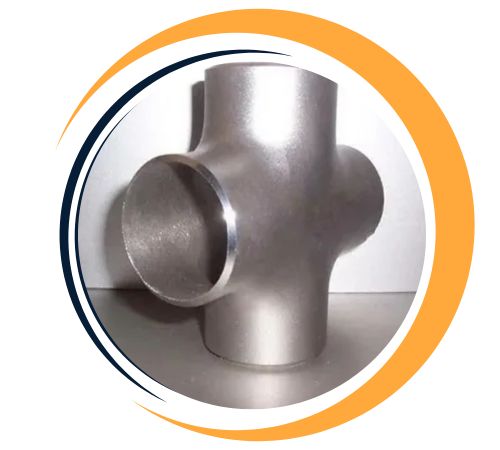

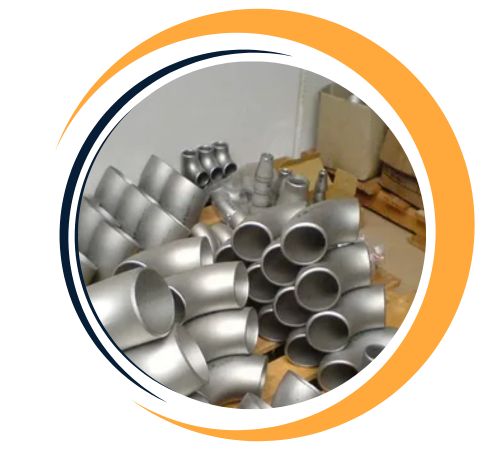

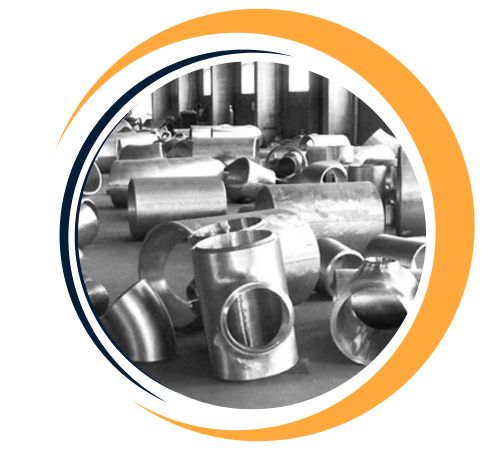

Types of Hastelloy C22 Buttweld Fittings

Are Custom Sizes Available for Hastelloy C22 Buttweld Fittings?

Yes, custom sizes for Hastelloy C22 Buttweld Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.

Hastelloy N06022 Buttweld Cross Indonesia, Hastelloy C22 Buttweld Pipe Nipple United kingdom, Hastelloy Alloy N06022 Buttweld Reducer Jakarta, JIS NW 6022 Buttweld Elbow Surabaya, Nickel Alloy C22 Buttweld Pipe Cap Bekasi, ASME SB366 Alloy C22 Buttweld Fittings Surabaya, Hastelloy® Alloy N06022 Buttweld Stub End Bandung, Alloy N06022 Buttweld Tee Indonesia, Alloy C22 Buttweld Welded Fittings United kingdom, Hastelloy N06022 Pipe Fittings Supplier in Jakarta, Indonesia.

Application Industry of Hastelloy C22 Buttweld Fittings

Alloy Steel WP22 Buttweld Fittings find their place in various industries that demand high strength and resistance to high temperatures. This includes oil and gas refineries, thermal and nuclear power plants, chemical processing facilities, and petrochemical sectors. Their outstanding weldability and durability make them ideal for connecting pipes in high-pressure settings, effectively transporting steam, gas, and corrosive fluids. In Jakarta, where industrial growth is on the rise, these fittings play a crucial role in supporting safe and efficient piping systems across both infrastructure and energy sectors. Zain Fittings is committed to delivering top-quality performance by providing fittings that meet rigorous quality and international compliance standards, ensuring longevity and reliability.
