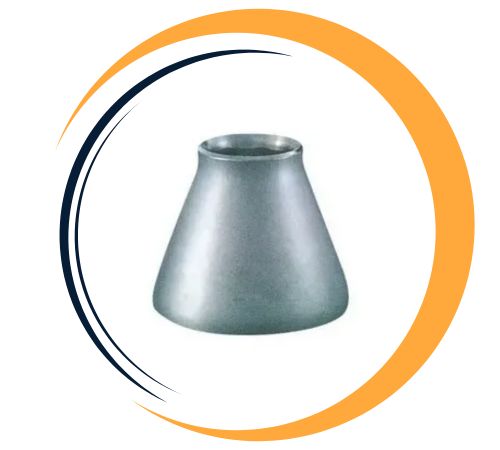

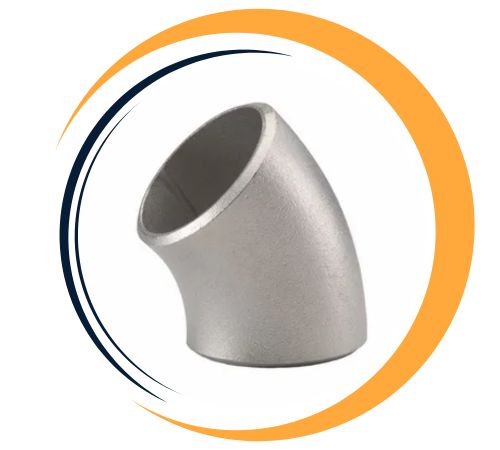

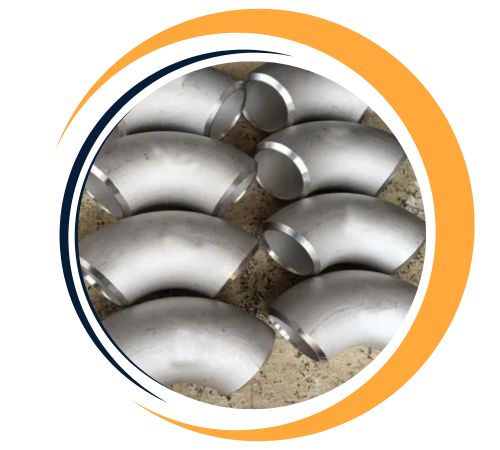

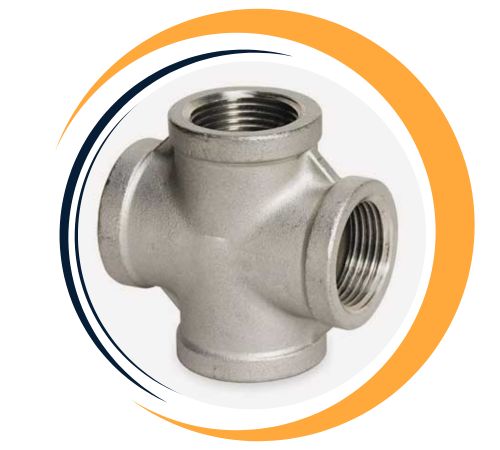

Zain Fittings is a reputable manufacturer and supplier of Super Duplex Steel S32760 Pipe Fittings, proudly based in Surabaya, Indonesia. The company has built a solid reputation for providing high-performance pipe fittings that blend strength, durability, and outstanding corrosion resistance. Super Duplex S32760 is a top-tier alloy known for its remarkable resistance to pitting, crevice, and stress corrosion cracking, particularly in environments rich in chlorides. Zain Fittings offers an extensive selection of Super Duplex Steel S32760 Pipe Fittings, including elbows, tees, reducers, caps, and crosses, all crafted to meet the demanding needs of industries such as oil and gas, petrochemical, marine, and desalination.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
These Super Duplex Steel S32760 Pipe Fittings are made up of roughly 25% chromium, 7% nickel, 3.6% molybdenum, and 0.7% tungsten, with small amounts of copper and nitrogen added to boost corrosion resistance. The alloy features a dual-phase austenitic-ferritic structure that provides exceptional mechanical properties, boasting a tensile strength of around 750 MPa, yield strength of about 550 MPa, and an elongation of 25%. These fittings are known for their impressive impact strength and resistance to stress corrosion cracking, even in harsh chloride and acidic conditions, ensuring they perform reliably in tough service environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Zain Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Jakarta, Indonesia. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Super Duplex Steel S32760 pipe fittings offer exceptional corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like seawater, chemical processing, and oil and gas industries. They combine high strength and excellent toughness, ensuring reliable performance under extreme pressure and temperature conditions. With excellent weldability, these fittings are easy to fabricate, reducing installation time and costs. Their resistance to chloride-induced corrosion and superior mechanical properties enhance longevity, making them a cost-effective solution for demanding industrial applications.

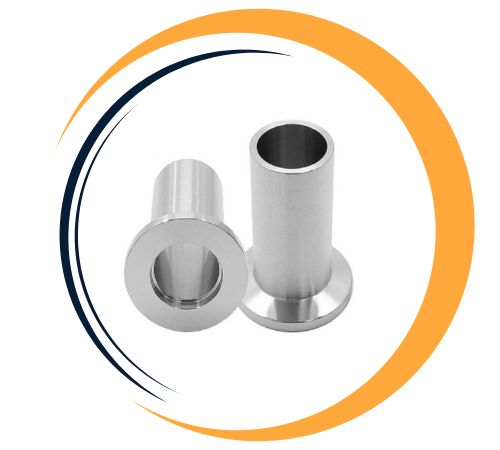

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
Super Duplex Steel S32760 Pipe Fittings are commonly utilized in industries that demand superior corrosion resistance and high mechanical strength under extreme pressure and temperature. They are perfect for offshore oil drilling, subsea pipelines, desalination units, chemical processing equipment, and heat exchangers. Their ability to endure aggressive marine and chloride environments makes them ideal for seawater piping systems and pressure vessels. Additionally, these fittings find applications in the paper and pulp, wastewater treatment, and food processing industries, where long-lasting durability, toughness, and corrosion resistance are crucial for safe and efficient operations.
