Stainless Steel 316TI Buttweld Fittings Manufacturer and Supplier In Jakarta, Indonesia

Zain Fittings, located in Surabaya, Indonesia, is a well-respected manufacturer and supplier of Stainless Steel 316TI Buttweld Fittings in Jakarta. They specialize in high-quality stainless steel piping components, offering top-notch 316TI buttweld fittings that are designed to resist corrosion and perform reliably even in high-temperature settings. These fittings are crafted to meet international standards and are commonly used in industries that require strong and durable connections. With a robust supply network and a dedication to quality, Zain Fittings plays a vital role in supporting industrial projects across Jakarta by providing efficient, cost-effective, and high-performance piping solutions.

Stainless Steel 316TI Pipe Elbow In Indonesia, Stainless Steel 316TI Pipe Fittings United kingdom, SS 316TI Buttweld Elbow Jakarta, Stainless Steel S31635 Seamless Fittings Exporter Surabaya, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Bekasi, Stainless Steel 316TI Two Joint Pipe Fittings Surabaya, 316TI Stainless Steel Welded Fittings Manufacturers in Bandung, Stainless Steel 316TI Buttweld Fittings In Indonesia, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Jakarta, Indonesia.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Stainless steel 316Ti Buttweld fittings are made from an alloy containing 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, and titanium (0.5-1.0%) is added to provide fighting strength high sensitivity during welding This alloy provides excellent corrosion resistance, especially in high chloride environments. Mechanical properties include 520 MPa tensile strength, 205 MPa yield strength and 40% elongation. The material also has high thermal resistance, with a maximum service temperature of about 870°C, making it ideal for chemical, petrochemical and food processing applications.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in Indonesia, Stainless Steel 1.4571 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Jakarta, Stainless Steel 316TI Eccentric Reducer Surabaya, Stainless Steel 316TI Equal Tee Bekasi, 316TI Stainless Steel Reducer in Surabaya, Stainless Steel 316TI SR Elbow Exporter in Bandung,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Jakarta, Indonesia

As a prominent manufacturer and supplier of Stainless Steel 316TI Buttweld Fittings in Jakarta, Zain Fittings creates fittings from titanium-stabilized austenitic stainless steel. The typical makeup includes 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and 0.5% Titanium, which helps prevent carbide precipitation during welding. These fittings boast impressive mechanical properties, with a tensile strength of about 515 MPa and a yield strength of 205 MPa. They maintain their strength and integrity even in high-temperature and corrosive environments, making them perfect for applications that require both durability and resistance to intergranular corrosion.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Zain Fittings?

Stainless Steel 316TI Buttweld Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings United kingdom, Stainless Steel 316TI Pipe Bend Stockist in Jakarta, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in Surabaya, Stainless Steel 1.4571 Butt Weld Pipe Fittings in Bekasi, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Surabaya, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in Bandung, Stainless Steel 316TI Pipe Butt weld Fittings In Indonesia, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Jakarta, Indonesia.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Zain Fittings’ Stainless Steel 316TI Buttweld Fittings are distributed throughout Jakarta and find applications in various sectors, including chemical processing, pharmaceuticals, food and beverage, marine, and heat exchanger systems. These fittings are particularly beneficial in settings where they face continuous exposure to high temperatures or corrosive substances. Their excellent weldability and strong resistance to pitting and stress corrosion cracking make them ideal for use in pipelines and pressure vessels.

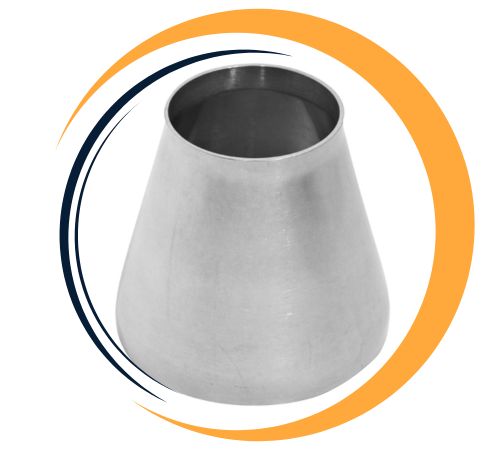

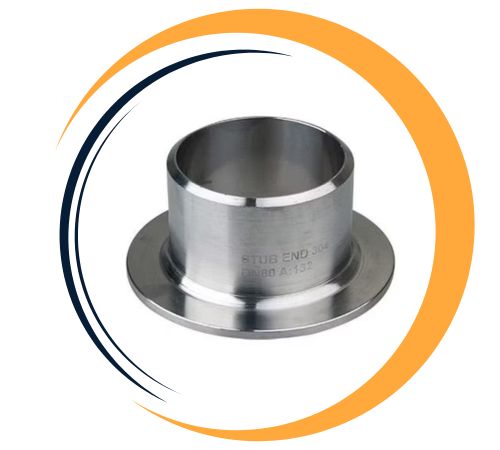

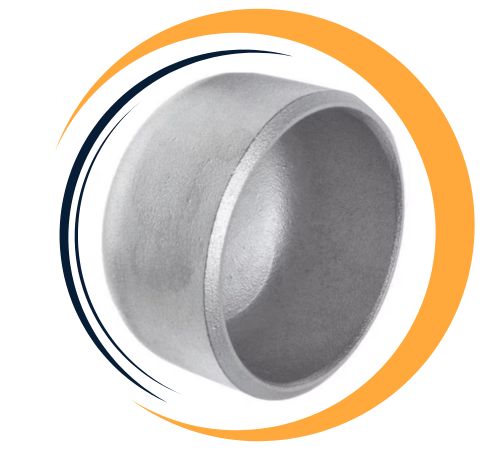

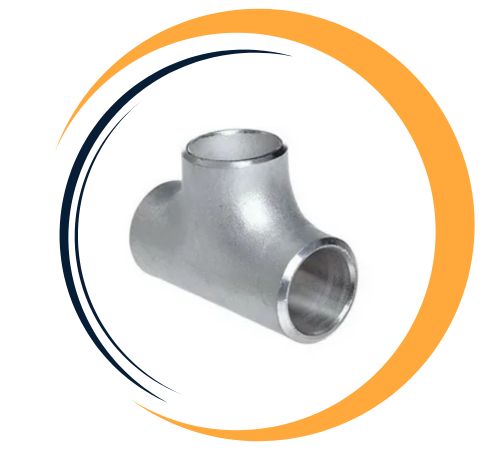

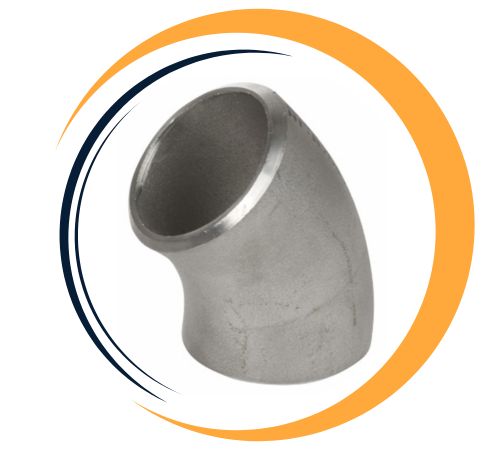

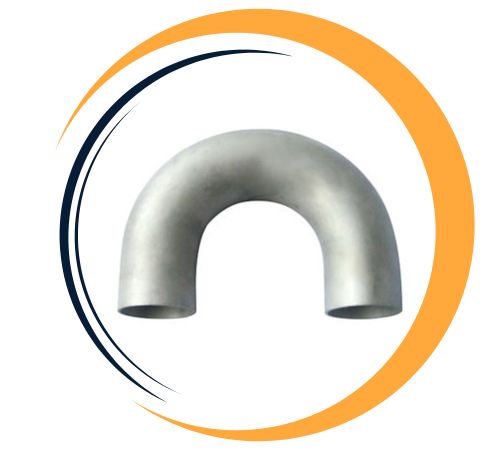

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.

ASTM A403 Stainless Steel 316TI Butt Weld Cross in Indonesia, Stainless Steel 28011 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Jakarta, Stainless Steel 316TI Eccentric Reducer Surabaya, Stainless Steel 316TI Equal Tee Bekasi, 316TI Stainless Steel Reducer in Surabaya, SS 316TI SR Elbow Exporter in Bandung,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless steel 316TI Buttweld Fittings, known for their high corrosion resistance and heat resistance, are widely used in industries such as chemical processing, food processing, pharmaceuticals and petrochemicals Their titanium materials provide corrosion resistance and intergranular damage is significant. These materials are ideal for high-pressure environments and are commonly found in pipelines, heat exchangers and pressure systems. They provide excellent durability and reliability, making them suitable for applications involving harsh environments, aggressive chemicals, or extreme temperatures.
