Zain Fittings is a top-notch manufacturer and supplier located in Surabaya, Indonesia, specializing in high-quality Stainless Steel 316L Pipe Fittings. These fittings are well-known for their outstanding corrosion resistance, durability, and strength, making them perfect for tough industrial applications. At Zain Fittings, precision manufacturing and strict compliance with international standards are a priority, ensuring that customers receive reliable and long-lasting products. Commonly used across various sectors like chemical, petrochemical, marine, pharmaceutical, and food processing, Stainless Steel 316L Pipe Fittings guarantee secure, leak-proof connections. Their exceptional resistance to pitting, crevice corrosion, and harsh environmental conditions makes them ideal for critical applications that demand high performance and long-term reliability.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

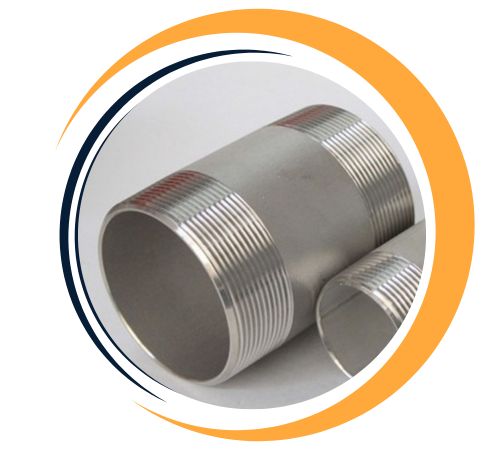

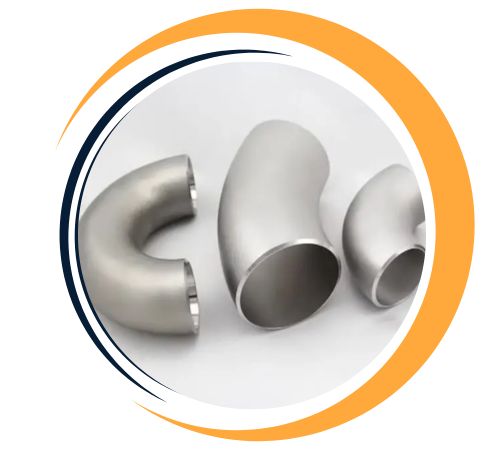

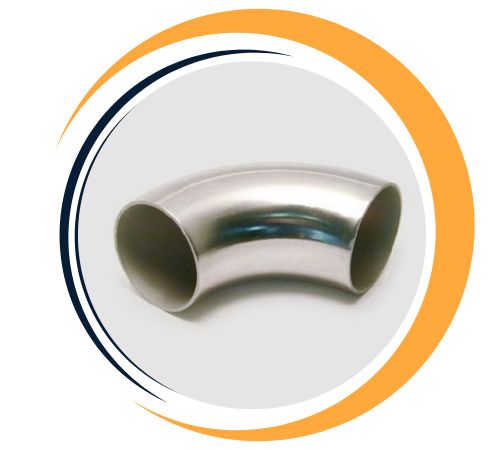

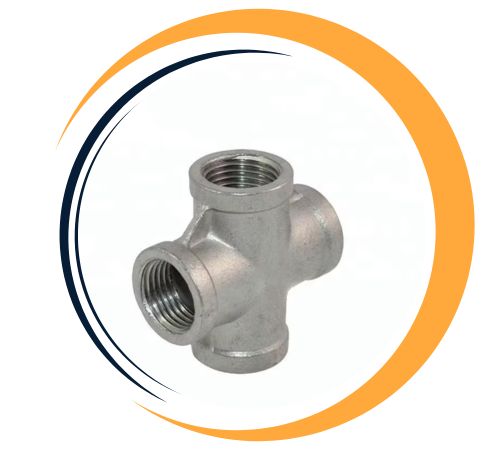

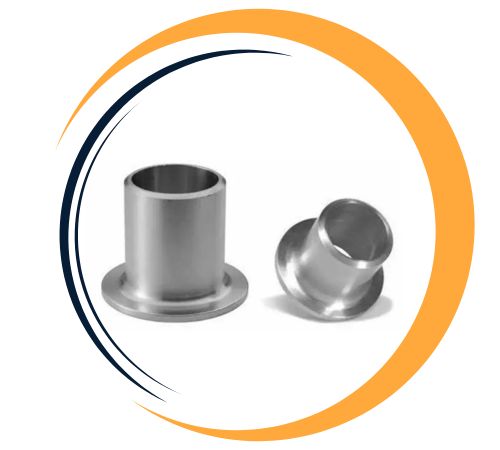

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
The composition of Stainless Steel 316L Pipe Fittings includes 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a low carbon content (maximum 0.03%) to boost corrosion resistance. This unique blend offers remarkable protection against pitting, crevice corrosion, and chloride-induced corrosion. On the mechanical side, these fittings boast a tensile strength of about 485–620 MPa, yield strength of 170–275 MPa, and an elongation of 40–50%. They also provide excellent toughness, weldability, and dimensional stability, ensuring they perform well in corrosive and moderately high-temperature environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Zain Fittings one of the largest suppliers of Stainless Steel 316L Pipe Fittings in Jakarta, Indonesia. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316L Pipe Fittings in the Indonesia.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316L Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17-11-02 / Z3CND18-14-03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
SS 316L Pipe Fittings offer exceptional corrosion resistance, particularly in chloride-rich environments, making them ideal for marine, chemical, and food processing industries. The low carbon content enhances weldability and reduces the risk of carbide precipitation, ensuring excellent performance in high-temperature applications. These fittings are highly durable, resistant to pitting, crevice corrosion, and stress corrosion cracking. They also maintain strength and integrity in aggressive environments, offering long-lasting reliability. Stainless Steel 316L fittings are easy to fabricate, install, and maintain, making them a trusted choice for demanding industrial applications.
| Nom. Pipe Size | 90° Elbows | 45° Elbows | 180° Return Bends | Tees | Lap Joint Stub Ends | Caps | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Long Rad. | Short Rad. | 3R | Long Rad. | 3R | Long Rad. | Short Rad. | C | M | F | G | R | E | |||
| A | A | A | B | B | O | K | O | K | |||||||
| ½ | 1.50 | – | – | 0.62 | – | 3.00 | 1.88 | – | – | 1.00 | 1.00 | 3.00 | 1.38 | 0.12 | 1.00 |
| ¾ | 1.50 | – | – | 0.75 | – | 3.00 | 2.00 | – | – | 1.12 | 1.12 | 3.00 | 1.69 | 0.12 | 1.00 |
| 1 | 1.50 | 1.00 | – | 0.88 | – | 3.00 | 2.19 | 2.00 | 1.62 | 1.50 | 1.50 | 4.00 | 2.00 | 0.12 | 1.50 |
| 1¼ | 1.88 | 1.25 | – | 1.00 | – | 3.75 | 2.75 | 2.50 | 2.06 | 1.88 | 1.88 | 4.00 | 2.50 | 0.19 | 1.50 |
| 1½ | 2.25 | 1.50 | – | 1.12 | – | 4.50 | 3.25 | 3.00 | 2.44 | 2.25 | 2.25 | 4.00 | 2.88 | 0.25 | 1.50 |
| 2 | 3.00 | 2.00 | 6.00 | 1.38 | 2.50 | 6.00 | 4.19 | 4.00 | 3.19 | 2.50 | 2.50 | 6.00 | 3.62 | 0.31 | 1.50 |
| 2½ | 3.75 | 2.50 | 7.50 | 1.75 | 3.12 | 7.50 | 5.19 | 5.00 | 3.94 | 3.00 | 3.00 | 6.00 | 4.12 | 0.31 | 1.50 |
| 3 | 4.50 | 3.00 | 9.00 | 2.00 | 3.75 | 9.00 | 6.25 | 6.00 | 4.75 | 3.38 | 3.38 | 6.00 | 5.00 | 0.38 | 2.00 |
| 3½ | 5.25 | 3.50 | 10.50 | 2.25 | – | 10.50 | 7.25 | 7.00 | 5.50 | 3.75 | 3.75 | 6.00 | 5.50 | 0.38 | 2.50 |
| 4 | 6.00 | 4.00 | 12.00 | 2.50 | 5.00 | 12.00 | 8.25 | 8.00 | 6.25 | 4.12 | 4.12 | 6.00 | 6.19 | 0.44 | 2.50 |
| 5 | 7.50 | 5.00 | 15.00 | 3.12 | – | 15.00 | 10.31 | 10.00 | 7.75 | 4.88 | 4.88 | 8.00 | 7.31 | 0.44 | 3.00 |
| 6 | 9.00 | 6.00 | 18.00 | 3.75 | 7.44 | 18.00 | 12.31 | 12.00 | 9.31 | 5.62 | 5.62 | 8.00 | 8.50 | 0.50 | 3.50 |
| 8 | 12.00 | 8.00 | 24.00 | 5.00 | 9.94 | 24.00 | 16.31 | 16.00 | 12.31 | 7.00 | 7.00 | 8.00 | 10.62 | 0.50 | 4.00 |
| 10 | 15.00 | 10.00 | 30.00 | 6.25 | 12.44 | 30.00 | 20.38 | 20.00 | 15.38 | 8.50 | 8.50 | 10.00 | 12.75 | 0.50 | 5.00 |
| 12 | 18.00 | 12.00 | 36.00 | 7.50 | 14.88 | 36.00 | 24.38 | 24.00 | 18.38 | 10.00 | 10.00 | 10.00 | 15.00 | 0.50 | 6.00 |
| 14 | 21.00 | 14.00 | 42.00 | 8.75 | 17.38 | 42.00 | 28.00 | 28.00 | 21.00 | 11.00 | 11.00 | 12.00 | 16.25 | 0.50 | 6.50 |
| 16 | 24.00 | 16.00 | 48.00 | 10.00 | 19.88 | 48.00 | 32.00 | 32.00 | 24.00 | 12.00 | 12.00 | 12.00 | 18.50 | 0.50 | 7.00 |
| 18 | 27.00 | 18.00 | 54.00 | 11.25 | 22.38 | 54.00 | 36.00 | 36.00 | 27.00 | 13.50 | 13.50 | 12.00 | 21.00 | 0.5 | 8.00 |
| 20 | 30.00 | 20.00 | 60.00 | 12.50 | 24.88 | 60.00 | 40.00 | 40.00 | 30.00 | 15.00 | 15.00 | 12.00 | 23.00 | 0.50 | 9.00 |
| 22 | 33.00 | 22.00 | 66.00 | 13.50 | 27.31 | 66.00 | 44.00 | 44.00 | 33.00 | 16.50 | 16.50 | 12.00 | 25.25 | 0.50 | 10.00 |
| 24 | 36.00 | 24.00 | 72.00 | 15.00 | 29.81 | 72.00 | 48.00 | 48.00 | 36.00 | 17.00 | 17.00 | 12.00 | 27.25 | 0.50 | 10.50 |
| 26 | 39.00 | – | 78.00 | 16.00 | 32.31 | – | – | – | – | 19.50 | 19.50 | – | – | – | 10.50 |
| 28 | 42.00 | – | 84.00 | 17.25 | 34.75 | – | – | – | – | 20.50 | 20.50 | – | – | – | 10.50 |
| 30 | 45.00 | – | 90.00 | 18.50 | 37.25 | – | – | – | – | 22.00 | 22.00 | – | – | – | 10.50 |
| 32 | 48.00 | – | – | 19.75 | – | – | – | – | – | 23.50 | 23.50 | – | – | – | 10.50 |
| 34 | 51.00 | – | 102.00 | 21.00 | 42.25 | – | – | – | – | 25.00 | 25.00 | – | – | – | 10.50 |
| 36 | 54.00 | – | 108.00 | 22.25 | 44.69 | – | – | – | – | 26.50 | 26.50 | – | – | – | 10.50 |
| 38 | 57.00 | – | 114.00 | 23.62 | 47.25 | – | – | – | – | 28.00 | 28.00 | – | – | – | 12.00 |
| 40 | 60.00 | – | 120.00 | 24.88 | 49.75 | – | – | – | – | 29.50 | 29.50 | – | – | – | 12.00 |
| 42 | 63.00 | – | 126.00 | 26.00 | 52.19 | – | – | – | – | 30.00 | 28.00 | – | – | – | 12.00 |
| 44 | 66.00 | – | 132.00 | 27.38 | 54.69 | – | – | – | – | 32.00 | 30.00 | – | – | – | 13.50 |
| 46 | 69.00 | – | 138.00 | 28.62 | 57.19 | – | – | – | – | 33.50 | 31.50 | – | – | – | 13.50 |
| 48 | 72.00 | – | 144.00 | 29.88 | 59.69 | – | – | – | – | 35.00 | 33.00 | – | – | – | 13.50 |
Yes, custom sizes are available for Stainless Steel 316L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@zainfittings.id.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 316L Pipe Fittings are extensively utilized in industries where corrosion resistance and mechanical reliability are essential. They are perfect for chemical processing equipment, seawater applications, marine piping, and pharmaceutical systems. In the food and beverage sector, these fittings ensure hygienic and durable connections. Additionally, they find applications in petrochemical plants, desalination units, and power generation systems. The combination of corrosion resistance, mechanical strength, and durability makes Stainless Steel 316L Pipe Fittings the go-to choice for high-performance piping systems in demanding industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
