Zain Fittings, based in Jakarta, Indonesia, is a trusted manufacturer and supplier of premium industrial fittings, known for delivering reliable and efficient solutions. Our Reducing Outlet Crosses are expertly designed to connect four pipelines while accommodating size reductions for optimized flow distribution. Crafted from durable materials, these crosses offer excellent resistance to corrosion, pressure, and wear. Ideal for industries such as oil and gas, chemical processing, and water treatment, Zain Fittings ensures high-quality products that deliver long-lasting performance in demanding environments.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Reducing Tee and Crosses, Fitting Outlet Reducing Tee and Crosses
Reducing Outlet Crosses are manufactured from robust materials like stainless steel, carbon steel, and advanced alloys, such as Duplex and Super Duplex, tailored to meet industrial demands. These materials provide excellent mechanical properties, including high tensile strength (500-900 MPa), yield strength (250-700 MPa), and elongation (20-30%). The fittings are designed to handle high-pressure and high-temperature environments while maintaining structural integrity. Their corrosion-resistant nature makes them ideal for use in harsh conditions. Reducing Outlet Crosses ensure reliable performance and durability, making them suitable for critical fluid and gas transmission applications.

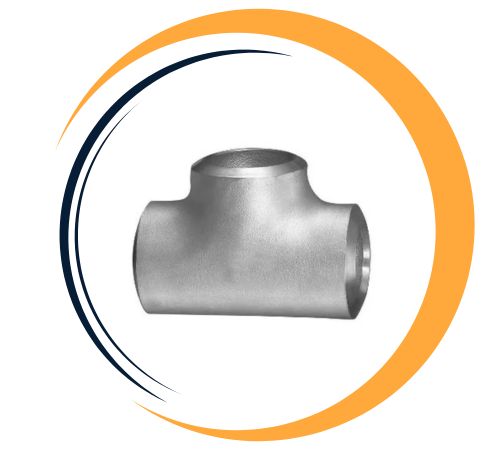

Stainless Steel Buttweld Reducing Tees & Crosses : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

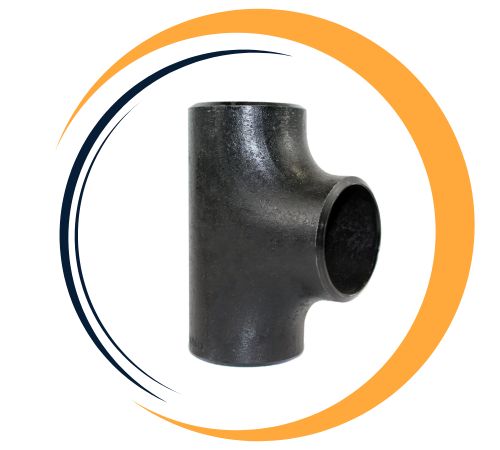

Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

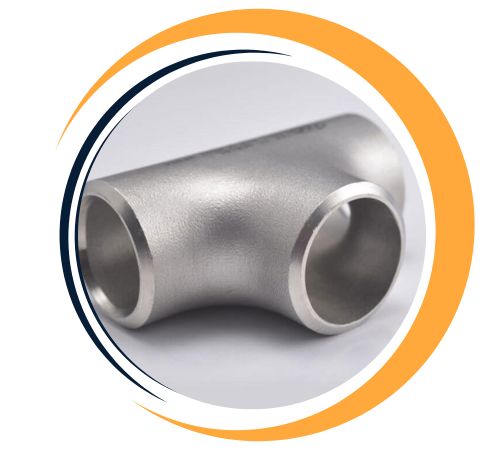

Alloy Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

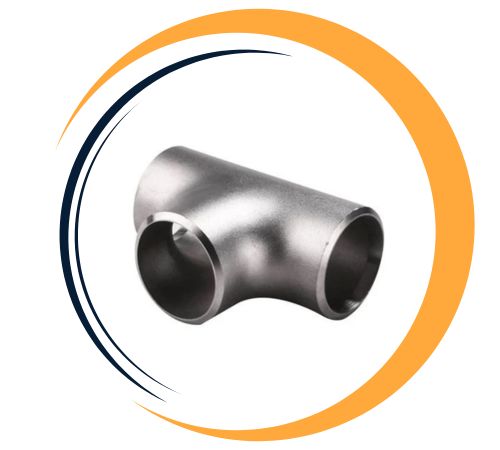

Duplex Steel Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

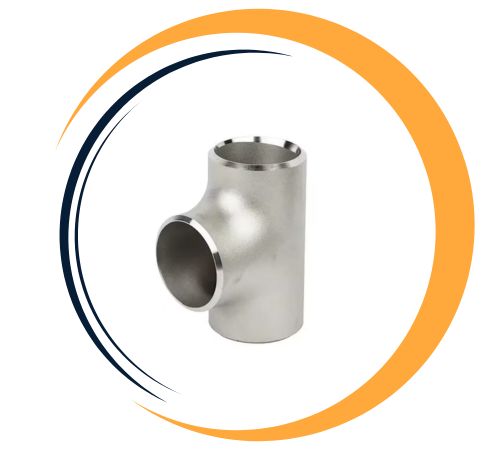

Super Duplex Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy Buttweld Reducing Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Zain Fittings stands out as a top-notch manufacturer and supplier of **Reducing Outlet Crosses** right in the heart of Jakarta, Indonesia. We specialize in crafting precision-engineered piping components that cater to a variety of industrial needs. With a strong focus on quality and reliability, we produce reducing outlet crosses in an array of materials, sizes, and pressure ratings, all designed to meet international standards like ASME B16.9 and ASTM specifications. These fittings are expertly designed to connect four pipes at right angles while allowing for size reductions at one or more outlets, providing the flexibility needed for intricate piping systems. Our products serve a diverse range of industries, including oil and gas, chemical processing, power generation, and water treatment, delivering reliable solutions that meet even the most demanding system requirements.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Our reducing outlet crosses are crafted from high-quality materials such as carbon steel, stainless steel, alloy steel, and specialized alloys, ensuring exceptional mechanical strength, corrosion resistance, and a long lifespan. These fittings are ideal for situations where multiple pipelines intersect and a smaller branch connection is necessary, helping to optimize flow distribution and cut down on material costs. Each fitting is manufactured with meticulous attention to dimensional accuracy, featuring smooth inner surfaces and sturdy construction to endure high pressures and temperatures in critical applications.
Reducing outlet crosses play a vital role in piping systems that require a change in pipe diameter while accommodating multiple directional flows. They’re commonly found in process plants, refineries, power plants, and industrial piping networks, where space limitations and system complexity call for compact and efficient solutions. By integrating different pipe sizes into a single fitting, they reduce the need for extra components, simplifying installation and enhancing overall system performance.
Yes, custom sizes for Reducing Outlet Crosses are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
| Nominal Pipe Size (NPS) | DN | Outlet Diameter at Bevel | Center- to-End | ||
| Run | Outlet | Run.C | Outlet. M[Notes(1)] | ||
| 1/2*1/2*3/8 | 15*15*10 | 21.3 | 17.3 | 25 | 25 |
| 1/2*1/2*1/4 | 15*15*8 | 21.3 | 13.7 | 25 | 25 |
| 3/4*3/4*1/2 | 20*20*15 | 26.7 | 21.3 | 29 | 29 |
| 3/4*3/4*3/8 | 20*20*10 | 26.7 | 17.3 | 29 | 29 |
| 1*1*3/4 | 25*25*20 | 33.4 | 26.7 | 38 | 38 |
| 1*1*1/2 | 25*25*15 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4*1-1/4*1 | 32*32*25 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4*1-1/4*3/4 | 32*32*20 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4*1-1/4*1/2 | 32*32*15 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2*1-1/2*1-1/4 | 40*40*32 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2*1-1/2*1 | 40*40*25 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2*1-1/2*3/4 | 40*40*20 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2*1-1/2*1/2 | 40*40*15 | 48.3 | 21.3 | 57 | 57 |
| 2*2*1-1/2 | 50*50*40 | 60.3 | 48.3 | 64 | 60 |
| 2*2*1-1/4 | 50*50*32 | 60.3 | 42.2 | 64 | 57 |
| 2*2*1 | 50*50*25 | 60.3 | 33.4 | 64 | 51 |
| 2*2*3/4 | 50*50*20 | 60.3 | 73.0 | 64 | 44 |
| 2-1/2*2-1/2*2 | 65*65*50 | 73.0 | 60.3 | 76 | 70 |
| 2-1/2*2-1/2*1-1/2 | 65*65*40 | 73.0 | 48.3 | 76 | 67 |
| 2-1/2*2-1/2*1-1/4 | 65*65*32 | 73.0 | 42.2 | 76 | 64 |
| 2-1/2*2-1/2*1 | 65*65*25 | 73.0 | 88.9 | 76 | 57 |
| 3*3*2-1/2 | 80*80*65 | 88.9 | 73.0 | 86 | 83 |
| 3*3*2 | 80*80*50 | 88.9 | 60.3 | 86 | 76 |
| 3*3*1-1/2 | 80*80*40 | 88.9 | 48.3 | 86 | 73 |
| 3*3*1-1/4 | 80*80*32 | 88.9 | 101.6 | 86 | 70 |
| 3-1/2*3-1/2*3 | 90*90*80 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2*3-1/2*2-1/2 | 90*90*65 | 101.6 | 73.0 | 95 | 89 |
| 3-1/2*3-1/2*2 | 90*90*50 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2*3-1/2*1-1/2 | 90*90*40 | 101.6 | 48.3 | 95 | 79 |
| 4*4*3-1/2 | 100*100*90 | 114.3 | 101.6 | 105 | 102 |
| 4*4*3 | 100*100*80 | 114.3 | 88.9 | 105 | 98 |
| 4*4*2-1/2 | 100*100*65 | 114.3 | 73.0 | 105 | 95 |
| 4*4*2 | 100*100*50 | 114.3 | 60.3 | 105 | 89 |
| 4*4*1-1/2 | 100*100*40 | 114.3 | 48.3 | 105 | 86 |
| 5*5*4 | 125*125*100 | 141.3 | 114.3 | 124 | 117 |
| 5*5*3-1/2 | 125*125*90 | 141.3 | 101.6 | 124 | 114 |
| 5*5*3 | 125*125*80 | 141.3 | 88.9 | 124 | 111 |
| 5*5*2-1/2 | 125*125*65 | 141.3 | 73.6 | 124 | 108 |
| 5*5*2 | 125*125*50 | 141.3 | 60.3 | 124 | 105 |
Reducing Outlet Crosses are widely used in industries requiring efficient flow distribution and size reduction in piping systems. They are essential in oil and gas pipelines, chemical processing plants, and water treatment facilities, where they connect four pipes of varying diameters for optimized fluid and gas flow. These fittings are also used in HVAC systems and power generation plants to manage complex network designs. With their ability to withstand high pressures and temperatures, Reducing Outlet Crosses ensure reliable performance in critical applications across demanding industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
