Zain Fittings, located in Surabaya, Indonesia, stands out as a leading manufacturer and supplier of high-quality Duplex Steel S32205 Pipe Fittings. Known for their precision engineering and exceptional material strength, these fittings are crafted to perform reliably even in the toughest industrial environments. Zain Fittings guarantees that all their products adhere to international quality standards, providing outstanding resistance to corrosion, erosion, and high-pressure situations. With state-of-the-art manufacturing facilities and a strong focus on customer satisfaction, the company caters to essential industries like oil and gas, petrochemical, marine, and power generation, delivering durable and efficient Duplex Steel S32205 Pipe Fittings for a wide range of applications.
| Specifications Standard | ASTM A815 /ASME SA815 |
|---|---|
| Duplex 2205 Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Origin & Mills | Indian, European, Korean, Japanese, Ukraine, USA, Russian |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Duplex 2205 Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

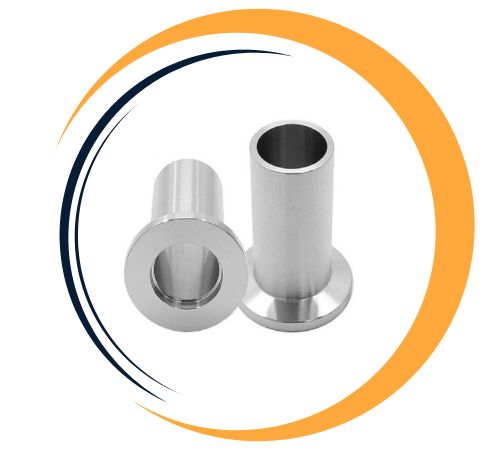

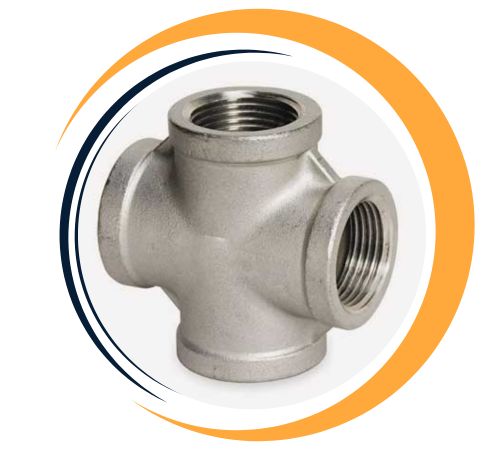

| Duplex 2205 Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |

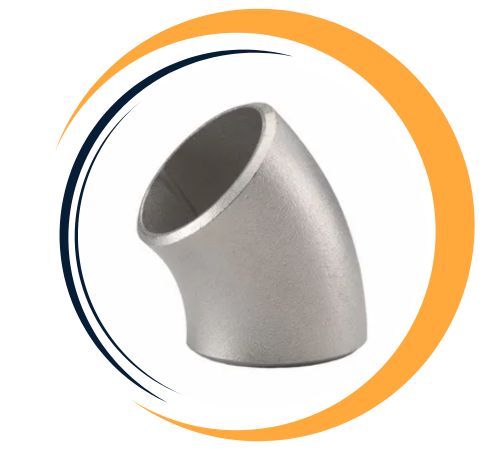

| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Duplex Steel S32205 Pipe Fittings comprise 22% chromium, 5% nickel, and 3% molybdenum, with nitrogen, manganese, and silicon traces. This composition provides excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. The mechanical properties include a high yield strength of around 450 MPa, tensile strength of 620 MPa, and elongation of 25%. S32205 exhibits good toughness, high chloride-induced stress corrosion cracking resistance, and excellent weldability. Its dual-phase microstructure (austenitic and ferritic) enhances strength and corrosion resistance, making it ideal for harsh environments.
| Grade | C | Mn | Si | N | P | Cr | Fe | Ni | S | Mo |
| S32205 Fittings | 0.030 maximum | 2.00 maximum | 1.00 maximum | 0.8 to 0.20 | 0.030 maximum | 21.0 to 23.0 | 63.54 minimum | 4.50 to 6.50 | 0.020 maximum | 2.50 to 3.50 |
| Grades | Density (lb/in 3) | Melting Point (°F) | Density (g/centimeter 3) | Melting Point (°C) |
| S32205 Fittings | 0.285 | 2588 to 2669 | 7.805 | 1420 to 1465 |
Duplex Steel S32205 Pipe Fittings boast a unique dual-phase microstructure of ferrite and austenite, which gives them remarkable strength and resistance to corrosion. Their composition includes chromium (22%), nickel (5–6%), molybdenum (3%), along with nitrogen, manganese, silicon, and iron making up the rest. These fittings demonstrate a tensile strength of around 620 MPa, a yield strength of 450 MPa, and an elongation of 25%. They are highly resistant to pitting, crevice corrosion, and stress corrosion cracking, while also offering excellent weldability, toughness, and fatigue strength across a variety of temperature ranges.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Super Duplex 2205 | 1.4462 | S32205 | – | – | – | – | – |
Duplex Steel S32205 Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Duplex Steel S32205 Pipe Fittings offer numerous advantages, including exceptional corrosion resistance, especially in chloride-rich environments. Their high strength-to-weight ratio makes them ideal for demanding applications while reducing structural load. The alloy’s superior resistance to stress corrosion cracking (SCC) and pitting enhances durability in harsh conditions. Duplex Steel S32205 fittings also exhibit excellent weldability, ensuring reliable connections. With good formability and high toughness, they are well-suited for chemical, marine, and oil and gas industries, providing long-lasting performance and reducing maintenance needs.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Yes, custom sizes for Duplex Steel S32205 Pipe Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
Duplex Steel S32205 Pipe Fittings are widely utilized in industries that demand superior mechanical strength and corrosion resistance. Common applications include offshore oil rigs, desalination plants, chemical processing units, marine engineering systems, and heat exchangers. They are also extensively used in pipelines, refineries, and pressure vessels that operate in harsh environments with chlorides and aggressive chemicals. The combination of cost-effectiveness, long service life, and structural reliability makes these fittings the perfect choice for heavy-duty industrial and marine applications where performance and safety are paramount.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
