Zain Fittings, located in Surabaya, Indonesia, has built a solid reputation as a reliable manufacturer and supplier of **Alloy Steel WP9 Pipe Fittings** for clients in Midland, UK. The company prides itself on delivering top-notch fittings that adhere to international standards for durability, precision, and performance. With state-of-the-art production facilities and rigorous quality control measures, Zain Fittings guarantees that each WP9 fitting offers exceptional corrosion resistance and high-temperature strength. They serve a variety of industrial sectors, providing dependable and cost-effective piping solutions for power generation, petrochemical, and refinery applications, and have earned a reputation for consistent quality and timely delivery in global markets.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

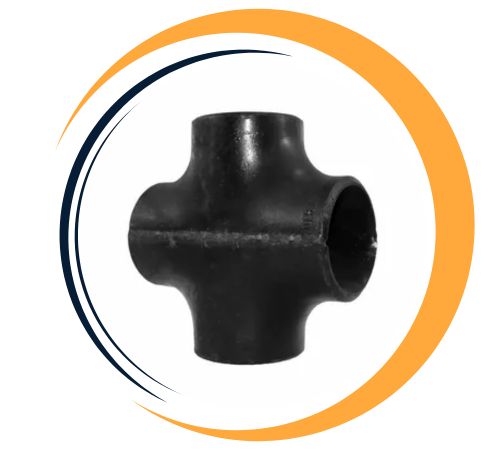

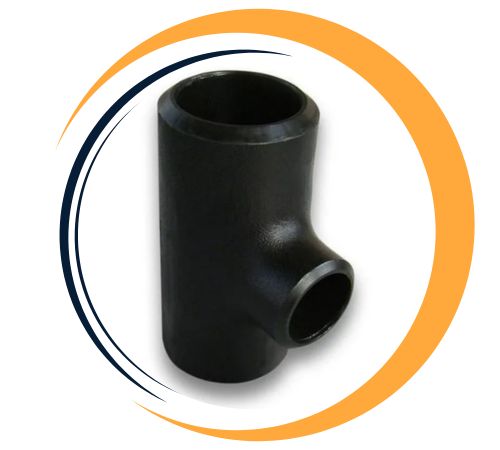

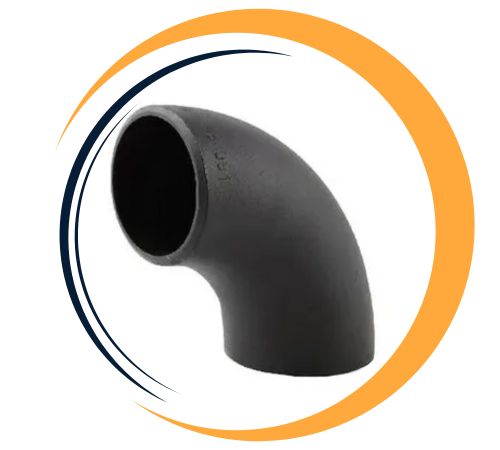

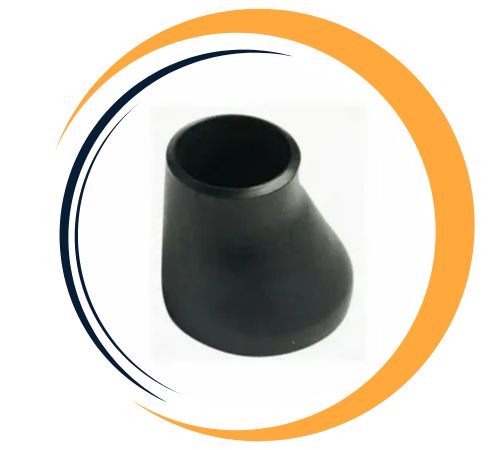

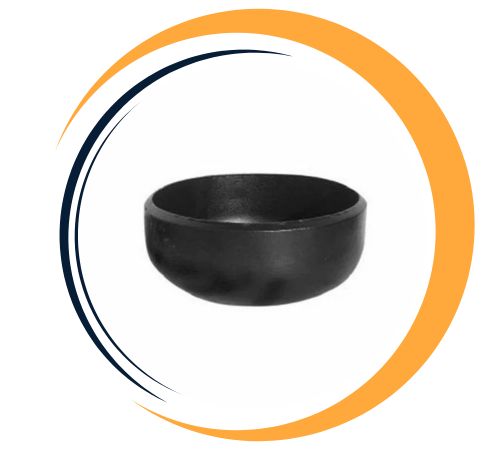

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Alloy Steel WP9 Pipe Fittings are primarily composed of chromium (8–10%) and molybdenum (0.9–1.1%), along with trace amounts of carbon, manganese, silicon, and sulfur, which contribute to their strength and resistance to oxidation. These fittings boast impressive mechanical properties, including high tensile strength, good yield strength, and excellent creep resistance at elevated temperatures. Their microstructure enables outstanding performance under pressure and stress, making them ideal for high-temperature and high-pressure environments across various industrial applications.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.90-1.10 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP9 | 380 min | 585 min | ≥30 |
Alloy Steel WP9 Pipe Fittings find extensive use in industries that require high-temperature and high-pressure service conditions. They are commonly utilized in thermal power plants, refineries, petrochemical units, and chemical processing systems. These fittings are perfect for connecting pipelines that transport steam, oil, or gas under extreme temperatures. Their remarkable resistance to corrosion, oxidation, and stress cracking makes them particularly well-suited for boiler systems, heat exchangers, and superheater lines, ensuring safe and efficient operation in critical industrial processes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP9 Pipe Fittings from Zain Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP9 Pipe Fittings offer exceptional strength and resistance to high temperatures, making them ideal for high-pressure applications in power generation and petrochemical processing industries. They exhibit excellent oxidation, corrosion, and creep resistance, ensuring long-term durability. These fittings maintain structural integrity at elevated temperatures, enhancing system reliability. Additionally, Alloy Steel WP9 is known for its ease of fabrication, weldability, and high tensile strength, ensuring smooth installation and long-lasting performance in harsh environments. Their versatility makes them a preferred choice for critical piping systems.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP9 Pipe Fittings are available at Zain Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@zainfittings.id.
Alloy Steel WP9 Pipe Fittings are widely used in high-temperature and high-pressure applications due to their exceptional strength, oxidation resistance, and ability to withstand extreme conditions. These fittings are common in power generation, petrochemicals, oil and gas, and chemical processing industries. They connect pipes in steam lines, boiler systems, and heat exchangers. Their excellent resistance to thermal fatigue and corrosion makes them ideal for applications where reliability and longevity are essential.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
